Resources

Sample Reports

Explore examples of the report formats BundleQuery can generate from VisionTally scan data. Each report can be tailored around the information your team needs to review, share, print, or pass along with a bundle.

Tally Reports

Tally reports show the grid results produced from VisionTallyHD scans for one or more bundles. Layouts can be customized with different tally grid formats, company letterhead, optional bundle graphics, and optional board overlays within the graphics.

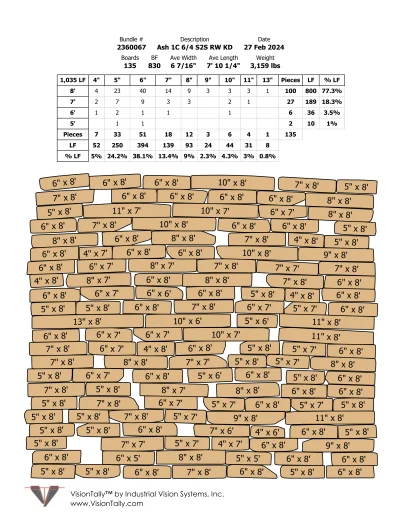

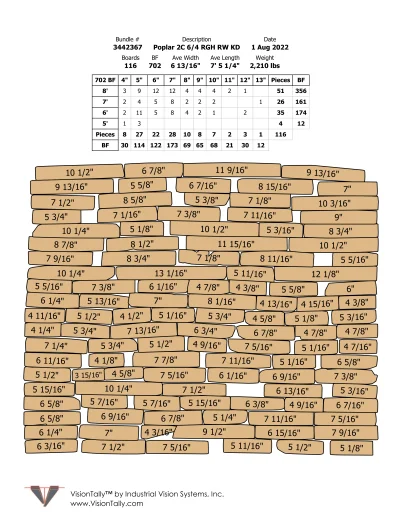

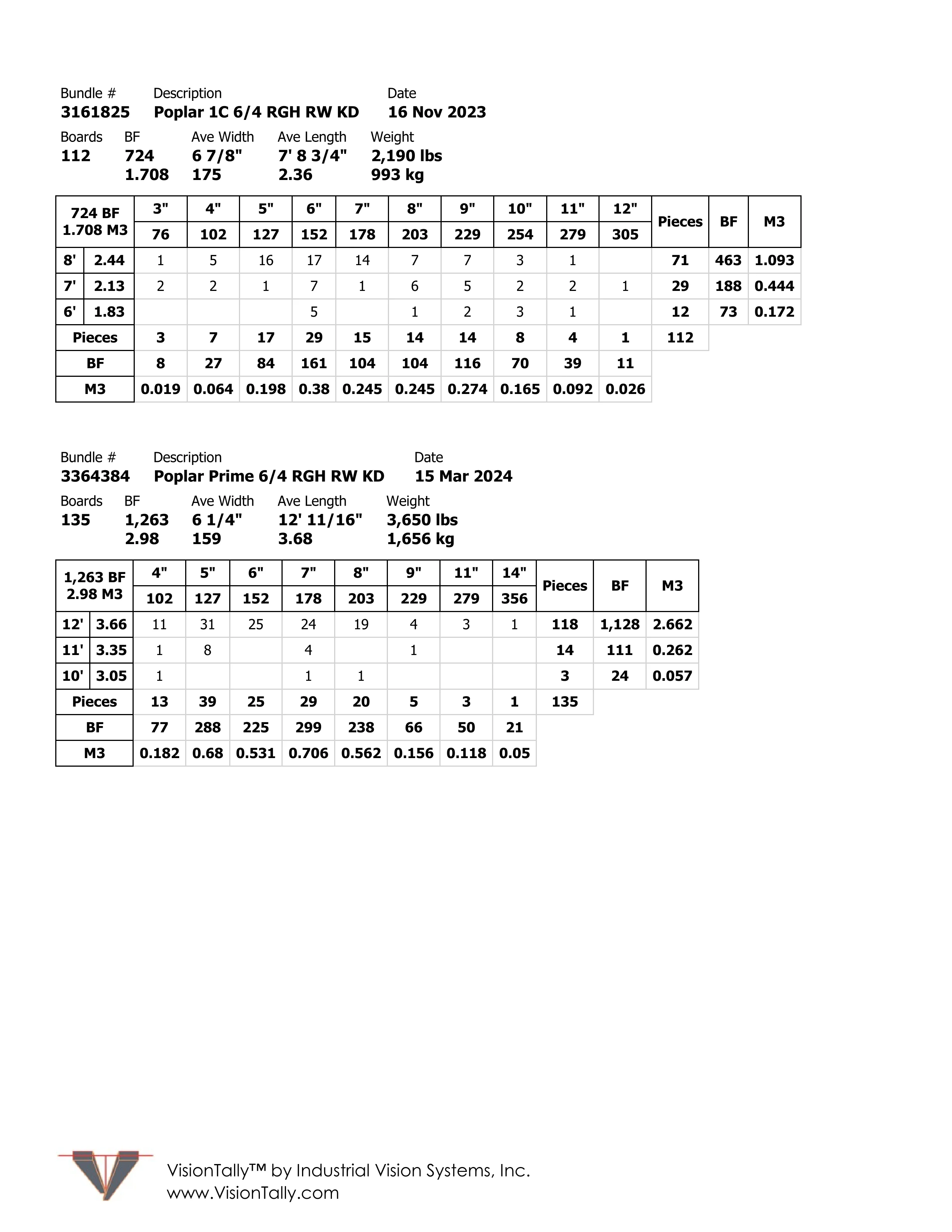

Tally report showing actual board widths and a bundle graphic Tally report showing linear feet and a bundle graphic showing nominal dimensions Batch tally report with multiple bundles Batch tally report showing both imperial and metric values Report with a grid showing the nominal dimensions of every board in the bundle Tally report displayed as a board summary

Bundle Summary Reports

Bundle summary reports provide different ways to review and compare multiple scanned bundles. Columns, sorting, grouping, and summary calculations can be configured around the data your operation needs to see.

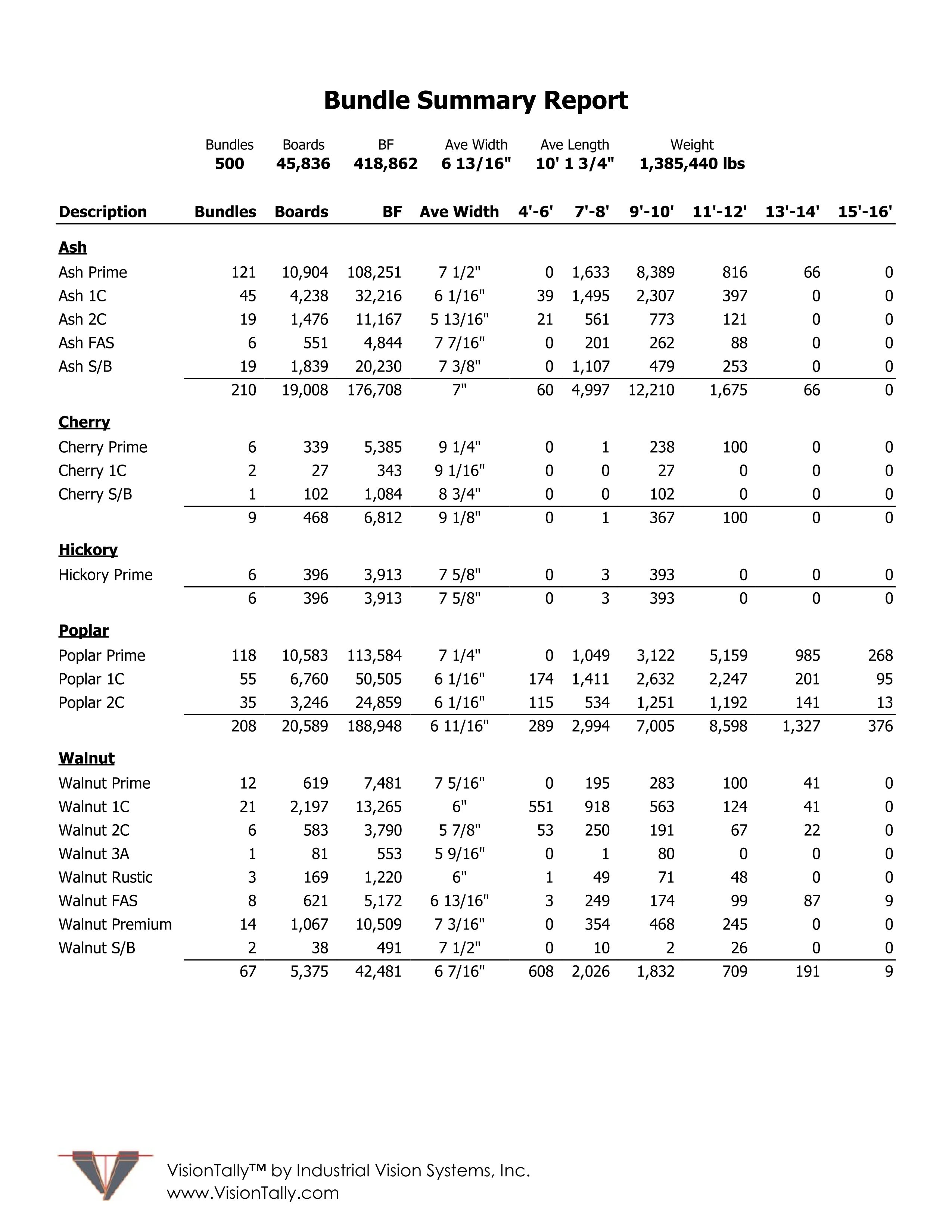

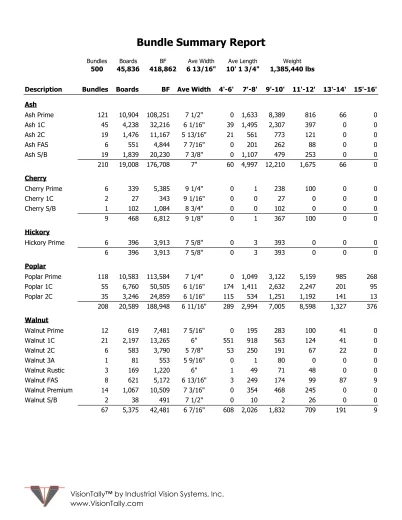

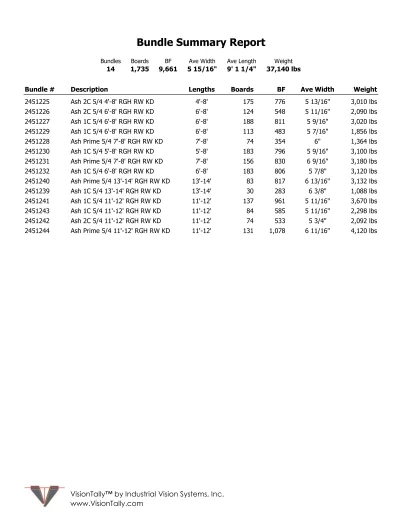

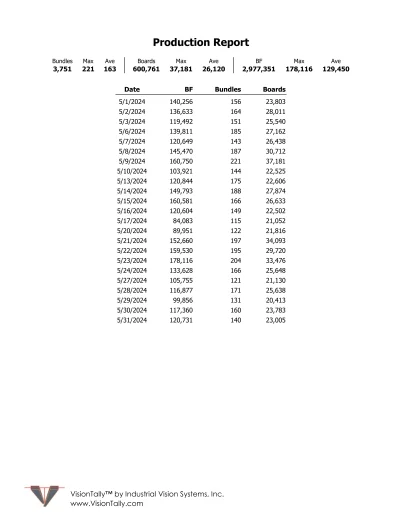

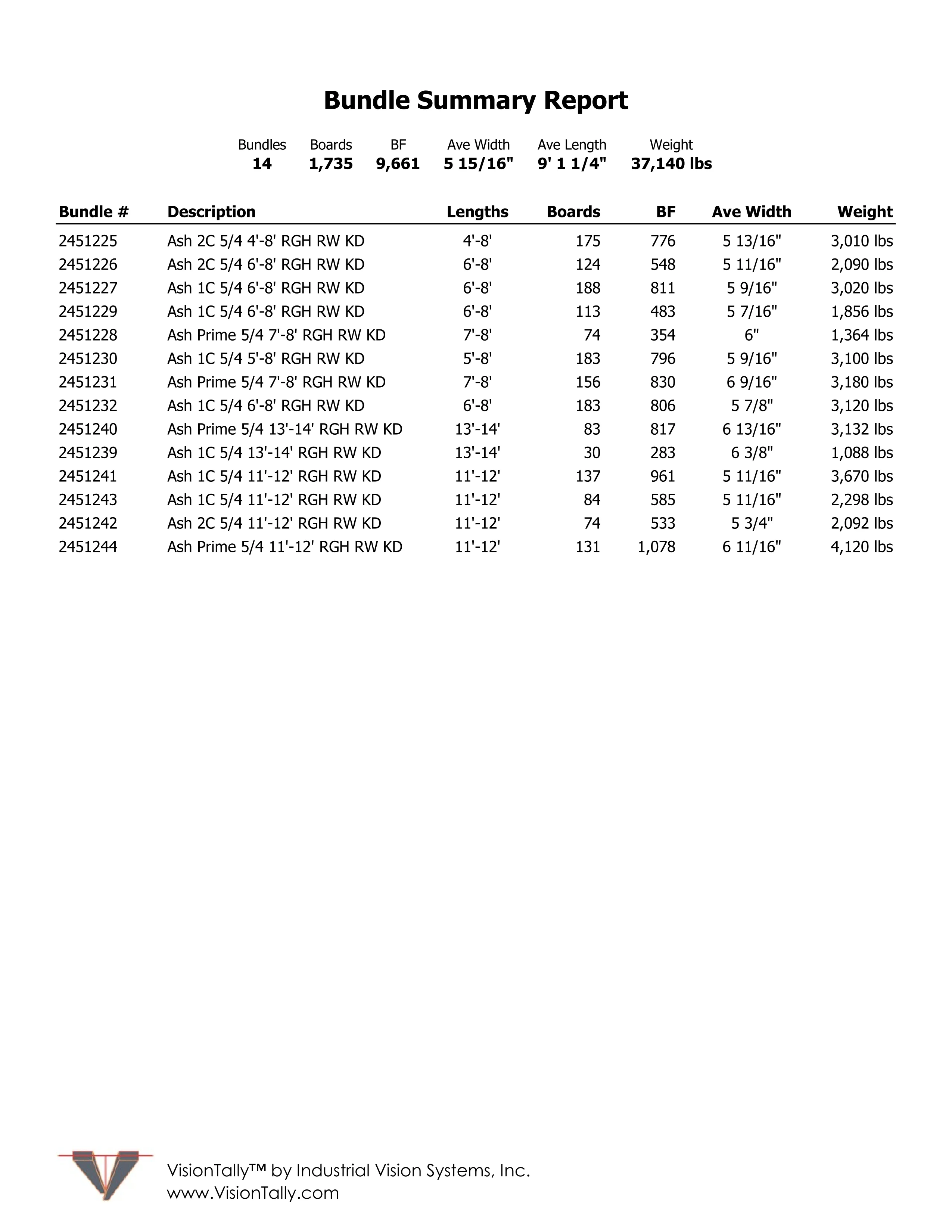

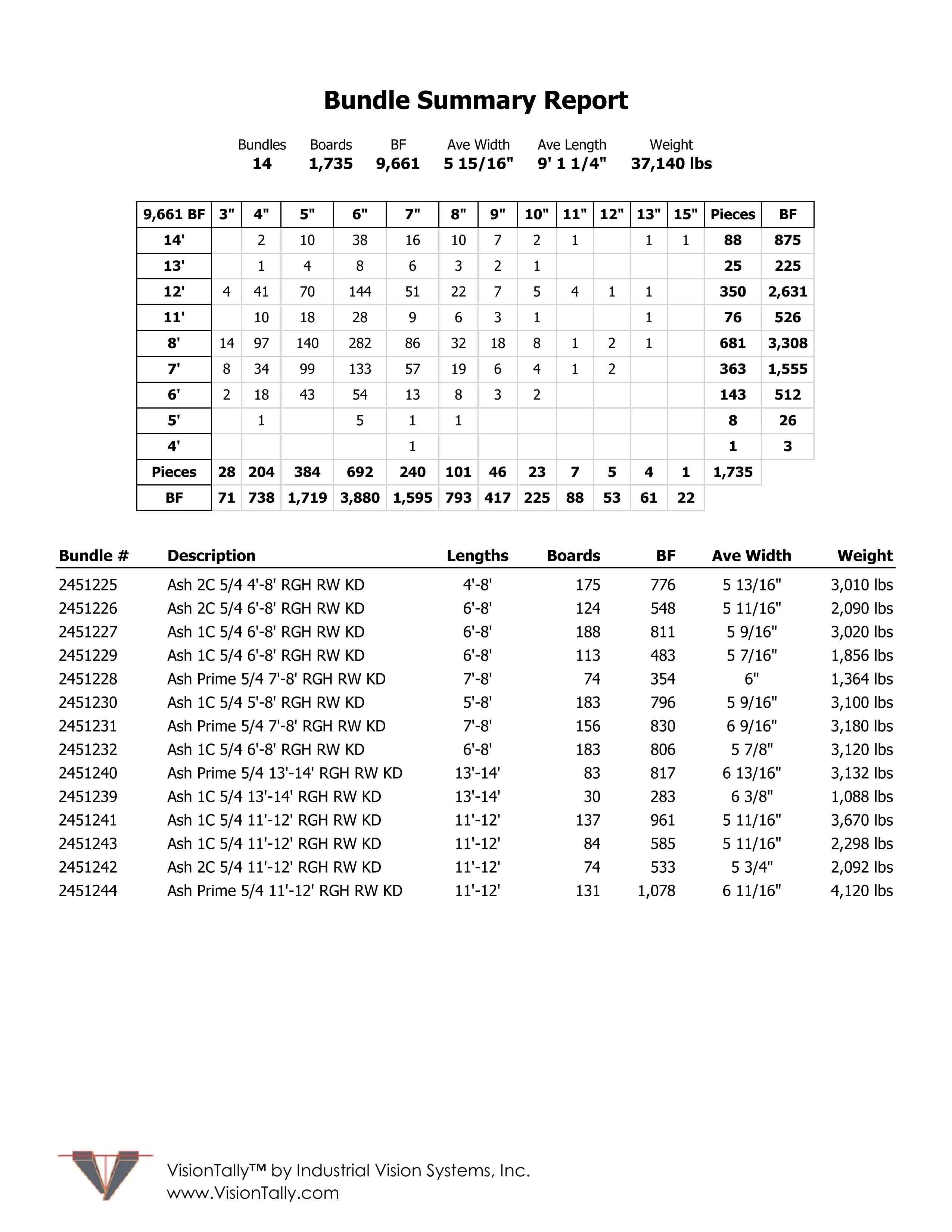

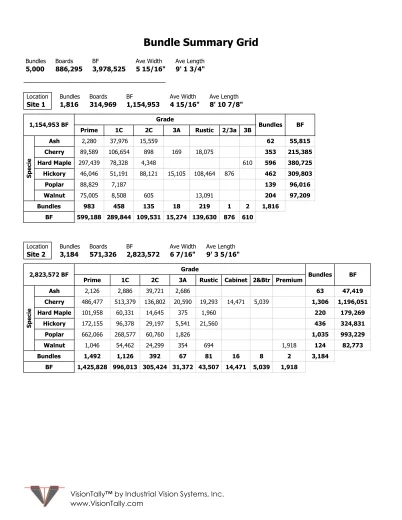

Standard bundle summary report Bundle summary report with a composite board tally grid Bundle summary report with a grid showing grades and nominal width Bundle summary report grouped by species and grade Bundle summary grid showing species and grade, grouped by location Production report by date

Bundle Tags

Bundle tags are printed after each scan and stapled to the finished bundle for identification and downstream handling. Each customer receives a custom tag layout, so these examples show a range of formats used in production environments.

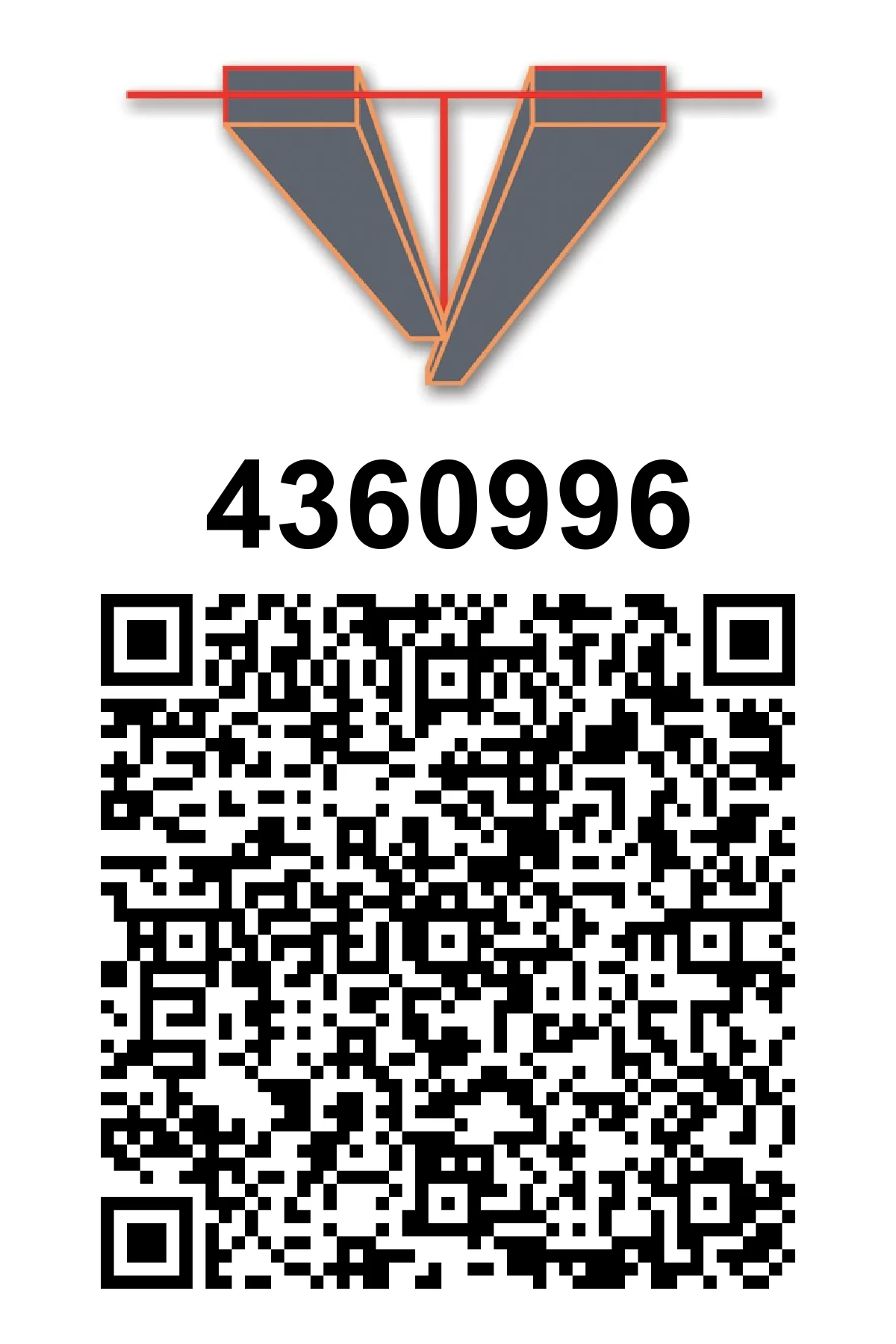

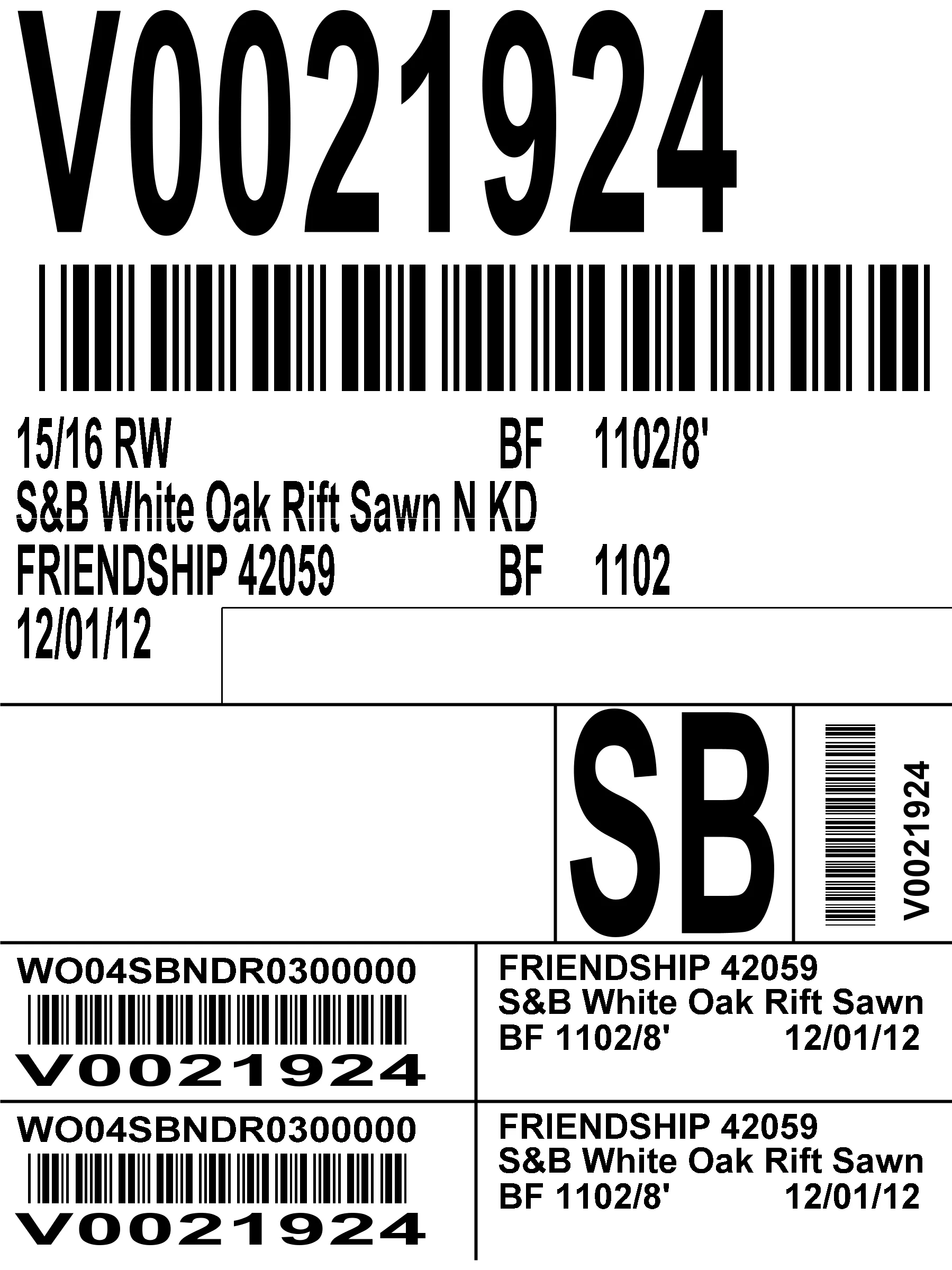

Bundle tag sample 1 Bundle tag sample 2 Bundle tag sample 3 Bundle tag sample 4 Bundle tag sample 5 Bundle tag with QR code
